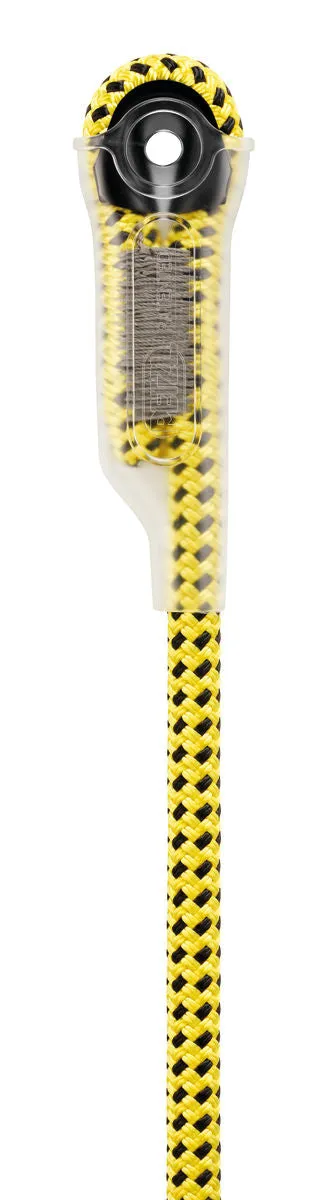

The RAY 12 mm static rope with sewn termination is designed for use with an ASAP or ASAP LOCK mobile fall arrester.
The standard diameter ensures a good grip for easier handling. It has low stretch when put under tension, allowing it to
meet the requirements of the ANSI Z359.15 American fall protection standard. The sewn termination with protective
sheath helps keep the connector in position and facilitates handling. Rope available in five lengths.

The RAY rope is designed for
use with an ASAP or ASAP
LOCK mobile fall arrester.

• Diameter: 12mm
• Material(s): polyester
• Certification(s): ANSI Z359.15
• Weight per meter: 106g
• Strength tied with figure-eight knot: 15kN
• Strength with sewn termination: 22kN
• Construction: 24 carrier
• Percentage of sheath: 44%
• Static elongation under 4 kN load: 3%
